Description
Features – Wireline Measuring Head
- Measures Both Line Tension and Line Payout
- Integrated Load Cell
- Max Line Tension 10,000 lb / 4,536 kg
- Works with Line Sizes from 0.081″ up to 5/16″ dia.
- Grease Fittings on All Bearings
- Available in Top or Bottom Mount
- Hinged Mounting Shaft
- Dual Counter Connections for Digital Encoder and/or Mechanical Counter
- Easy Line Changes – No Tools Required
- Guides Rollers at Front & Back
- Counting Wheels for 1 ft and 1/3 m Circumference are Available

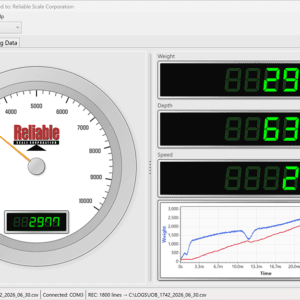

- Compatible with Reliable Scale Corporation Digital Dial series indicator with tension, depth and speed monitoring
- Aluminium & Stainless Frame Optimized for Light Weight and High Strength
- Sturdy Clamping Springs Eliminate Line Slippage at Counting Wheels
Product Details & Industry Applications

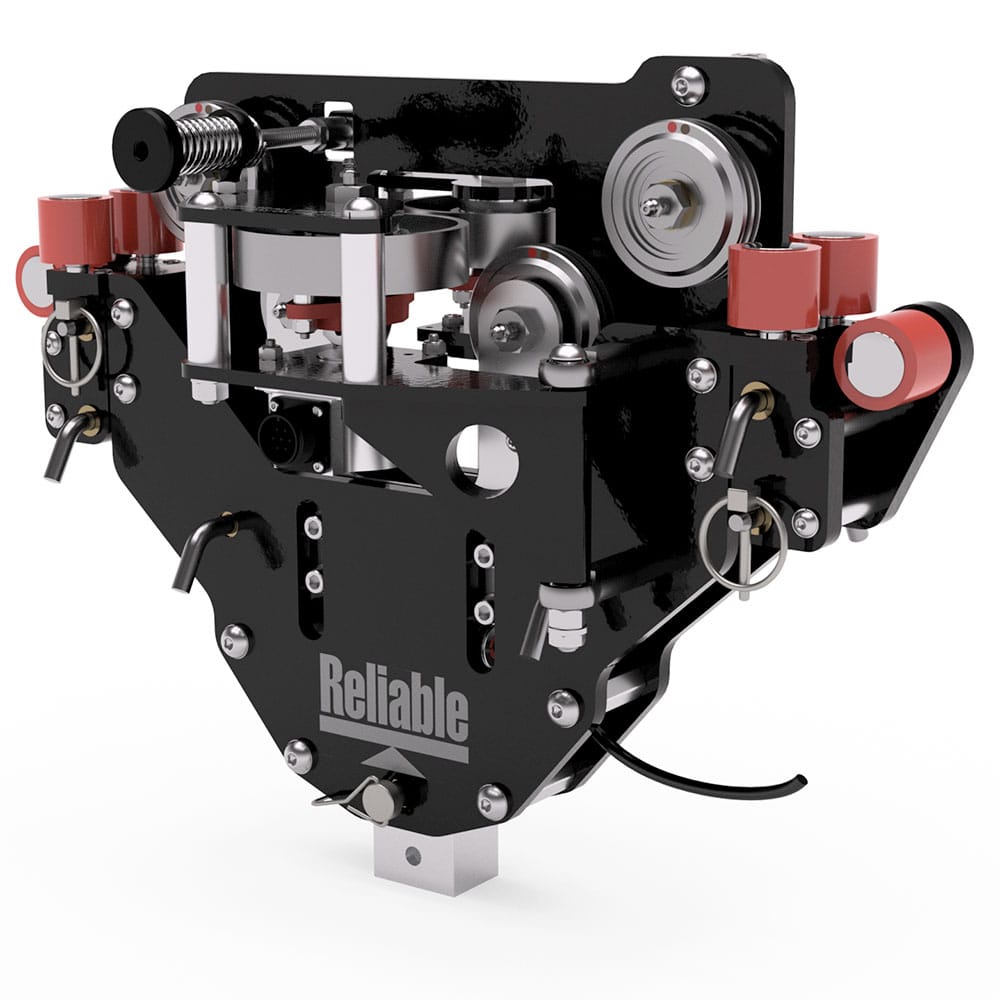

The MHD-47 Wireline Measuring Head is a precision tool designed to provide accurate measurement of both line tension and line payout in wireline operations. Ruggedly engineered for oilfield environments, this measuring head is an essential component for wireline service companies, logging contractors, and production teams that demand dependable cable measurement under the toughest conditions.
Constructed with a combination of aluminium and stainless steel, the MHD-47 delivers exceptional durability while keeping the frame lightweight enough for ease of handling. Its heavy-duty rollers are fitted with grease fittings for smooth operation, reducing wear and extending service life even in harsh drilling and logging environments. Strong clamping springs ensure positive line tracking and minimize slippage, making every measurement more reliable.
The system supports a wide range of wireline sizes, from 0.081″ up to 5/16″ diameter, and can be configured for either top-mount or bottom-mount installation depending on your rig requirements. A hinged mounting shaft allows for quick installation and adjustment in the field, reducing downtime and improving operator efficiency. Operators can also benefit from the dual counter option—mechanical or digital—ensuring that both line tension and payout length are captured with accuracy.
Built to withstand temperature extremes ranging from –30 °F to 140 °F (–35 °C to +60 °C), the MHD-47 Wireline Measuring Head is tested and proven for dependable use in oilfield conditions worldwide.
Key Benefits
- Accurate measurement of both line payout and tension.
- Durable design with stainless steel and aluminium components.
- Reduced maintenance thanks to grease-fitted rollers.
- Flexible mounting with top or bottom configurations.
- Supports multiple line sizes from 0.081″ to 5/16″.
- Easy installation with hinged shaft for fast deployment.
- Works in harsh environments with wide temperature tolerance.
Industry Applications
The MHD-47 Wireline Measuring Head has versatile applications across oilfield and energy operations:
- Wireline logging and formation testing — Provides reliable payout and depth control during reservoir evaluation.
- Well servicing and intervention — Enhances safety by monitoring line tension and preventing slack or overrun.
- Production monitoring — Ensures depth accuracy for monitoring tools and gauges.
- Downhole inspection and retrieval — Maintains precise control when recovering tools or equipment from wells.
- Pipeline and rig operations — Supports safe handling of cable lines under variable load conditions.
Frequently Asked Questions
What line sizes does the MHD-47 support?
It is compatible with wirelines ranging from 0.081″ to 5/16″ diameter.
Can it handle extreme field conditions?
Yes — it operates in environments from –30 °F to 140 °F (–35 °C to +60 °C).
Is it easy to install?
The hinged mounting shaft makes installation and adjustments straightforward, even in field conditions.
Does it support digital counters?
Yes, the MHD-47 can be equipped with either mechanical or digital counters for payout measurement.
Why Choose the MHD-47 Wireline Measuring Head?
With its robust construction, accurate performance, and ease of field use, the MHD-47 Wireline Measuring Head is a trusted solution for oilfield professionals who require consistent tension and payout monitoring. By reducing downtime, improving safety, and providing precise cable control, it ensures reliable performance in the most demanding wellsite operations.
Specifications
| Model MHD-47 | |
| Operating Temperature | -30 F to 140 F / -35 C to +60 C |
| Approximate Dimensions (including encoder) | 18″L x 18″H x 9″W / 45.7 cm x 45.7 cm x 22.9 cm |
| Approximate Shipping Weight | 32 lb / 14.5 kg |
| Specifications subject to change without notice. | |
Documents
MHD-47 Product Brochure
