Wireline Systems
Line tension measurement from slick-line to heavy wireline
Upgrade hydraulics with drop-in electronic systems
Capacities from 1,000 lb to 15,000 lb
Built for extreme field conditions — rated to -40°
Purpose-built load cells and weight indicators
Tension, depth & speed, and data logging
Proudly made in North America
Backed by Reliable Scale — sales, service, and support you can count on
Let Us Help You Find What You Need
Tension, Depth & Speed Heads
Load Cells & Sensors
Instrumentation
Software Logging
Tension, Depth & Speed Heads
Load Cells & Sensors
Instrumentation
Software Logging

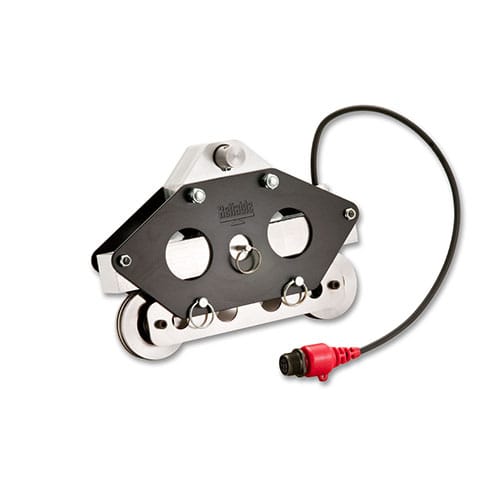

Tension, Depth & Speed Heads
Highlights:
- Line tension measurement for slick-line & e-line
- Capacities from 1,000 lb to 10,000 lb
- Built for extreme field conditions — rated to -40°
- Interchangeable sheaves for quick line changes
- Compatible with Reliable Scale wireline indicators
Specifications are subject to change without notice. Contact Reliable Scale for the most current product information.

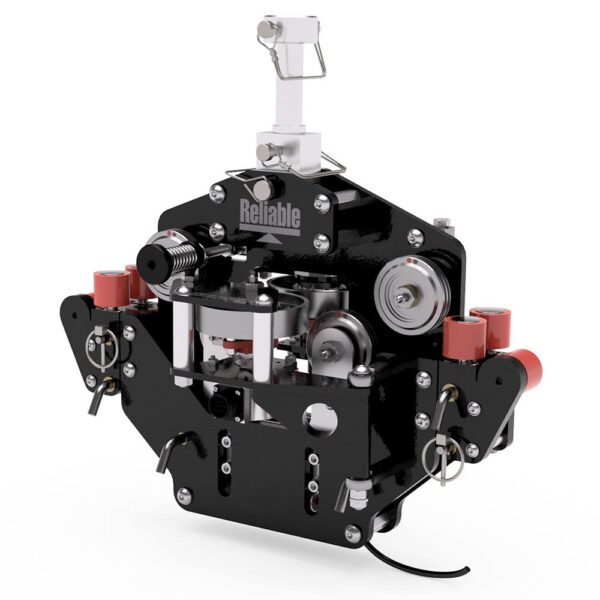

MHD-47
Ideal for:
- Wireline line tension and payout measurement
- Top, bottom or dual mount configurations
Features
- Capacity: 10,000 lb
- Line sizes: 0.081″ to 5/16″ diameter
- Aluminum and stainless steel construction
- Easy line changes without tools
- Grease-fitted bearings
- Dual counter connections
- Compatible with DD Series and Model 865 indicators
Features
- Interchangeable sheaves: 0.092″ to 0.375″ line
- No disconnecting required for sheave changes
- Full scale output: 2mV/V
- Operating temperature: -40°F to 140°F
- 100% safe overload

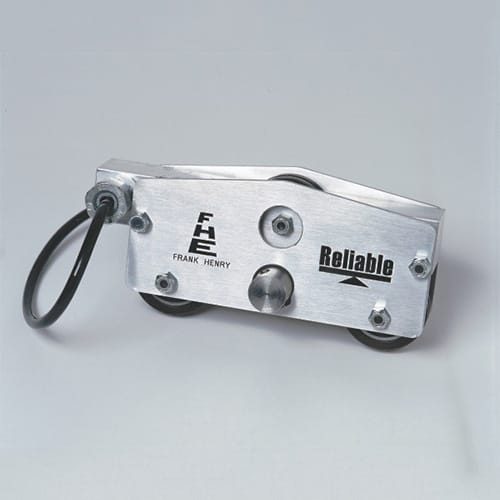

FHE-M-1K Slick-Line Tension Monitor
Ideal for:
- Slick-line operations requiring high sensitivity
- Compact installations
Features
- Capacity: 1,000 lb
- Ultra-sensitive load cell technology
- Interchangeable sheaves: 0.092″ through to 0.250″
- Full scale output: 2mV/V
- Operating temperature: -40°F to 140°F
- 100% safe overload
Not Sure Which Size Fits Your Operation?
Load Cells & Sensors
Highlights:
- Capacities to match your application
- Electronic replacements for hydraulic sensors
- Compatible with Reliable Scale wireline indicators
- Custom designs available
Specifications are subject to change without notice. Contact Reliable Scale for the most current product information.

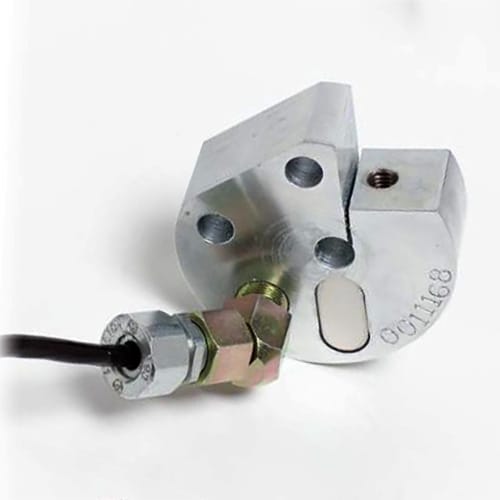

FHE-15K
Ideal for:
- Electronic replacement for hydraulic sensors
- Easy integration with your measuring head
- Real-time monitoring with stable output
Features
- Capacity: 15,000 lb
- Full scale output: 3mV/V
- Operating temperature: -40°F to 140°F

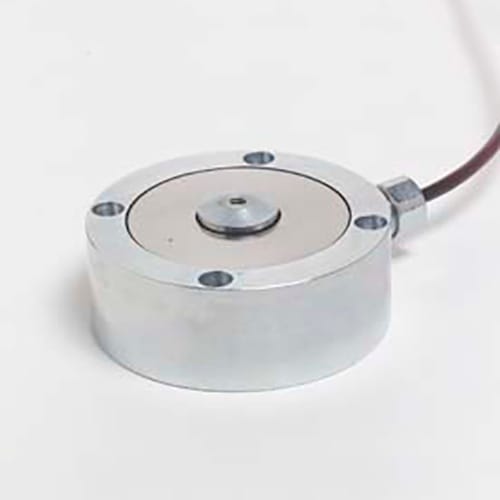

C06 Pancake Style Load Cells
Ideal for:
- Inline tension and compression measurement
- Compact installations with limited space
- Can be customized to your application
Features
- Multiple capacities available
- Compact, low-profile compression style
- Some models usable in tension and compression
- Solid, hollow, or threaded load button options
- Sealed for use in harsh environments
- Operating temperature: -40°F to 140°F
- Custom designs available
Not Sure Which Load Cell Fits Your Operation?
Instrumentation
Highlights:
- Purpose-built for wireline weight and tension display
- Depth and speed counter options
- Field-adjustable calibration
- Compatible with all Reliable Scale wireline load cells
Specifications are subject to change without notice. Contact Reliable Scale for the most current product information.
DD Series Digital Dial
Ideal for:
- Wireline tension, depth & speed display
- Operations needing analog dial + digital readout
- Data logging with DD-Logger
Features
- “Posi-Drive” analog pointer with backlit LCD
- Dial sizes: 6″, 8″, 10″, 12″, 16″
- Selectable mV or mA input
- Optional analog output (4-20mA or 0-5VDC)
- RS-232 with optional second port
- Field adjustable calibration
- Operating temperature: -20°F to 140°F
Model 865 Wireline Weight Indicator
Ideal for:
- Wireline operations needing weight + depth/speed
- Real-time tension monitoring with counter
- Data logging with DD-Logger
Features
- Weight indicator with depth/speed counter
- Quadrature encoder interface
- Selectable mV or mA input
- Optional analog output (4-20mA or 0-5VDC)
- RS-232 with optional second port
- Field adjustable calibration
- Counter only configuration available w/ backup battery

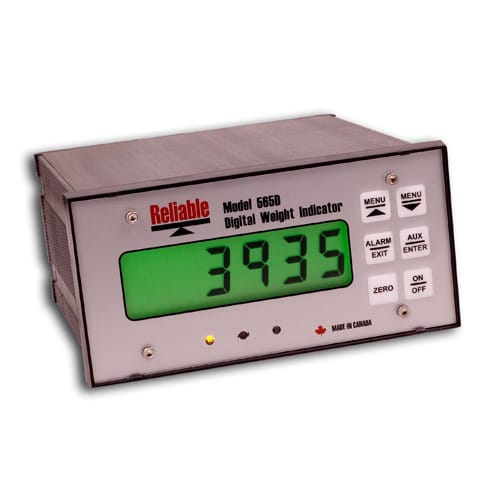

Model 565 Wireline Weight Indicator
Ideal for:
- Low-profile wireline weight display
- Operations needing responsive analog output
- Alarm and real-time clock functions
Features
- User-programmable resolution and sensitivity
- Low-profile design
- Analog output: 4-20mA or 0-5VDC
- Output ports for alarms
- Real-time clock
- RS-232 output
Have Questions? We’re Here to Help
Hardware & Software Logging
Highlights:
- Record wireline operations data in real time
- Weight, tension, depth, and speed logging
- Post-job analysis and reporting
Specifications are subject to change without notice. Contact Reliable Scale for the most current product information.

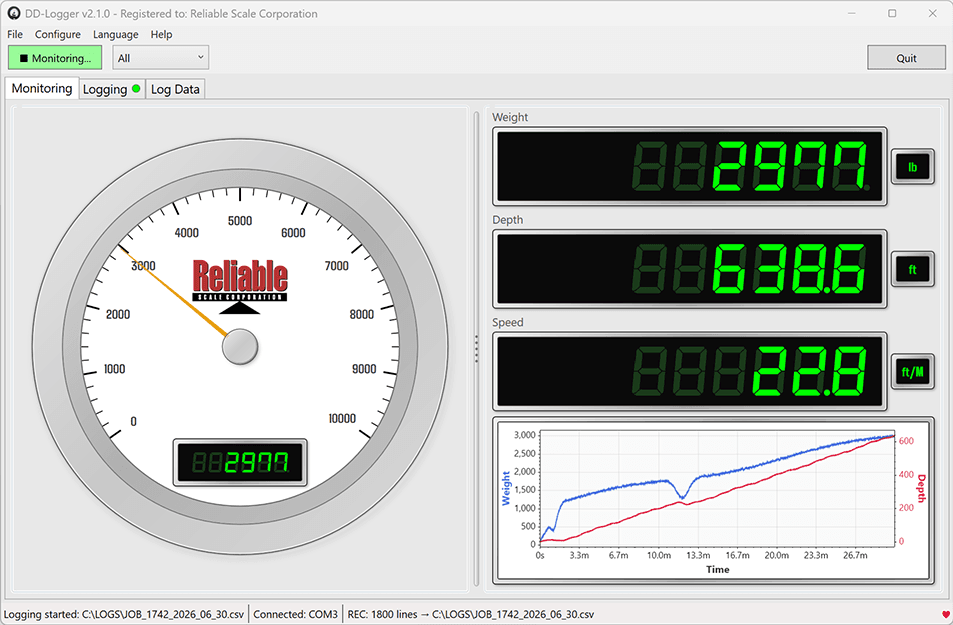

DD-Logger Software
Ideal for
- Recording wireline operations data
- Post-job analysis and reporting
- Real-time weight and tension monitoring
Features
- Logs weight, tension, depth, and speed
- Works with DD Series, Model 865 & Model 565D (weight only) indicators
- RS-232 connection
- PC-based software
MHD-47 Product Brochure
