Description

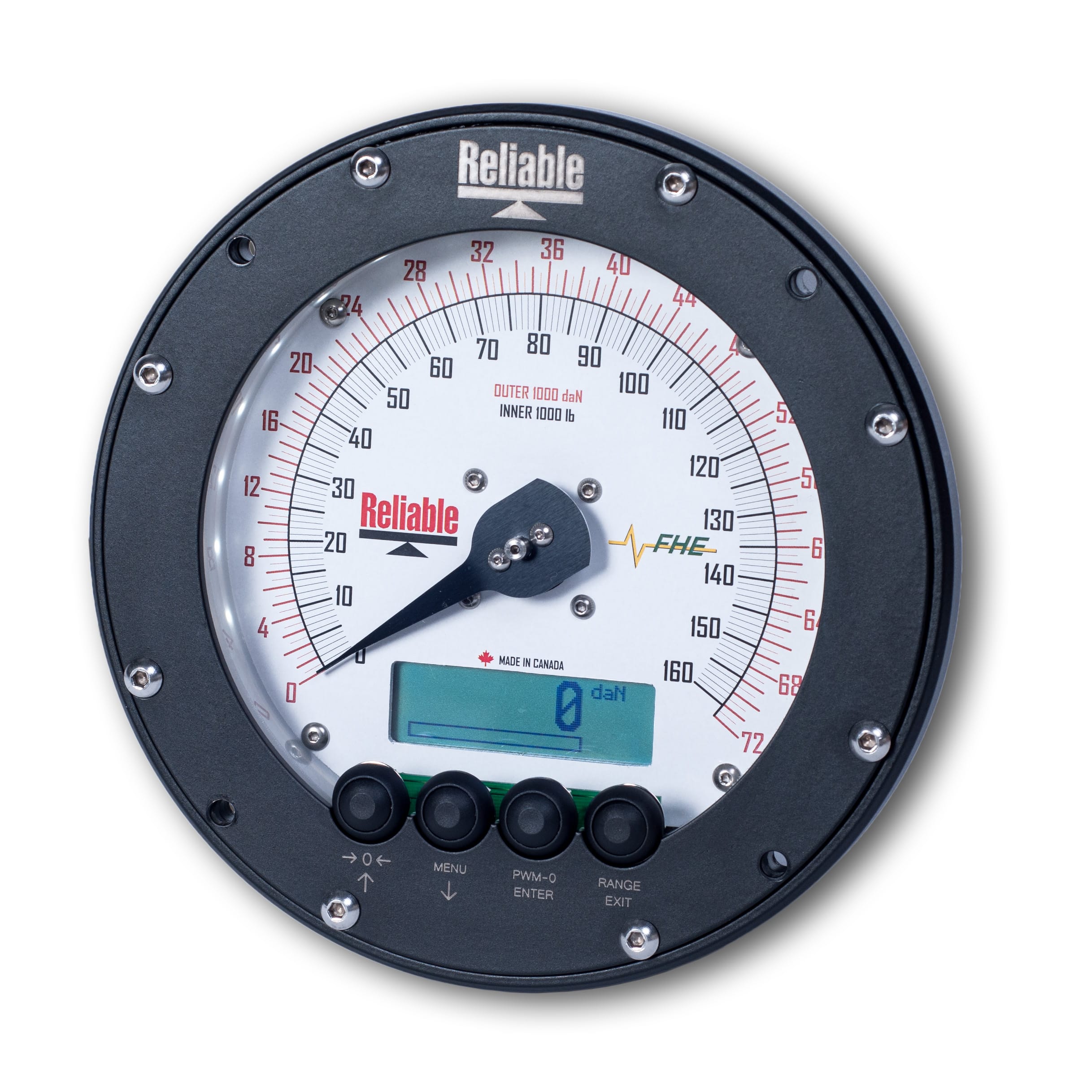

Features of DD Series Wireline Weight Indicator / Drilling Rig Weight Indicator
- Resolution, sensitivity, and increments are user programmable
- Selectable mV (Load Cell) or mA (4-20mA Current Loop) signal input
- Field adjustable calibration
- High speed sampling for rapid response to weight changes

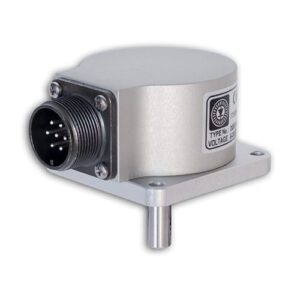

- Optional Quadrature Encoder interface for depth and speed measurement
- Optional analog output (4-20mA or 0-5VDC) tracks the digital display
- RS-232 port (optional 2nd RS-232) for computer interfacing, data-logging or remote display
- Dial Face with custom ranges available
Works with DD-Logger Data Logger for Digital Dial software
Specifications for DD Series Wireline Weight Indicator / Drilling Rig Weight Indicator
|
Model DD-06L
|
Model DD-08L
|
Model DD-10S
|
Model DD-12S
|
|
|
Input Voltage Requirement
|
12 VDC
|
|||
|
Display
|
6″, 250° dial w/ “Posi-Drive” analog pointer and backlight
|
8″, 250° dial w/ “Posi-Drive” analog pointer and backlight
|
10″, 250° dial w/ “Posi-Drive” analog pointer and backlight
|
12″, 250° dial w/ “Posi-Drive” analog pointer and backlight
|
|
0.625″ graphic LCD w/backlight
|
||||
|
Load Cell Excitation
|
7.5 VDC
|
|||
|
4-20mA Loop Power
|
24 VDC
|
|||
|
Load Cell / 4-20mA Loop Measurement Units
|
daN, lb, kg (with internal conversion) psi, kPa (no internal conversion)Programmable Parts of Line compensation |
|||
|
Encoder Interface*
|
A/B Quadrature Inputs at 5VDC (DD-xx can supply 5VDC up to 75 mA for encoder)
|
|||
|
Encoder Sensitivity*
|
100 to 6400 pulses per revolution
|
|||
|
Encoder Wheel Size*
|
Programmable to 4 decimal places
|
|||
|
Depth Measurement Units*
|
m or ft (no internal conversion)
|
|||
|
Speed Measurement Units*
|
per Second or per Minute
|
|||
|
Alarm Detail
|
optional 5V logic outputs (6)
|
|||
|
Computer Interface
|
1 RS-232, optional 2nd RS-232
|
|||
|
Increments
|
1, 2, 5, 10, 20, 50, 100, 200, 500, 1000 w/decimal point
|
|||
|
Counts
|
230,000 internal
|
|||
|
Operating Temperature
|
-20 F to 140 F / -10 C to +60 C
|
|||
|
Case Dimensions
|
6.625″ dia
|
8.625″ dia
|
10.75″ dia
|
12.75″ dia
|
|
Current Requirements
|
500 mA typical (1 load cell)
|
|||
|
Display Update Rate and Averaging
|
Programmable
|
|||
|
Calibration
|
Field Programmable
|
|||
|
Zero Range
|
Programmable Up to full scale
|
|||
|
Approximate Shipping Weight
|
10lb
|
12lb
|
20 lb
|
23 lb
|
|
* with Encoder Interface Option |
||||
