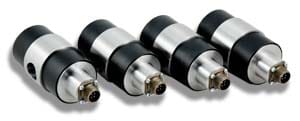

C10M Mixer Load Cells

Description

Features

  • Ruggedly built for mobile use
  • Improved “Binocular” design resists side loading
  • Redundant O-ring and poured seals are effective in wet conditions
  • Cadmium plating resists corrosion
  • Sealed military-style connectors keep water out of contacts
  • Replaces Mix-Weigh BBD30K


Specifications

Model C10M-30K
Weight Capacity
30,000lb / 13,600kg
Accuracy
+/-0.25% @ full load
Operating Temperature
-40F to 140F / -40C to 60C
Safe Overload
100% of capacity
Maximum Excitation
15V ac or DC
Bridge Resistance
350 ohms nominal
Full Scale Output
1.5mV/V nominal @ full load
Approximate Shipping Weight
6.25lb / 2.8kg

Specifications subject to change without notice.

Documents

C10M-30K Mechanical Drawing
